104,999.00 ~~115,000~~ 9% off

Item Details
Brand	BLUE STAR
Model	VC136GBTUR3
Capacity	3 Ton
Star Rating	1 Star
Colour	White
Item Net Dimensions WxHxD	1800 x 550 x 350 mm (IDU) / 1075 X 950 X 470 mm (ODU)
Item Net Weight	47.2 Kg (IDU) / 70.8 Kg (ODU)
Manufacturer	BLUE STAR LIMITED
Warranty	1 Year Warranty on Product, PCB and Compressor

Technical Specifications
Air Conditioner Type	Verticool
(Rated) Voltage / Frequency / Phase	415V / 5OHz / 3Ph
Cooling Capacity(Min~Max) (Watt)	10450
Cooling Capacity (Min~Max)BTU/Hr	35655.0
Cooling Rated Power Input (Min~Max)(Watt)	3700
ISEER	2.82
Electricity Consumed In 1600 Hours. (Units/Year)	2864
Nominal Current (Cooling in Amps)/Running Current	6.5
Air Flow Volume (Wet CFM) (High/ Medium/ Low)	1050/877/704
Noise Level Indoor (High/Low) In dB(A)	50/44
Moisture Removal (Litres/Hour)	3.6
Compressor Type	Rotary
Eco Friendly Refrigerant	R-32
Refrigerant Quantity (gms)	1800
Ambient Temp Range (Cooling)°C	17ºc to 52ºc

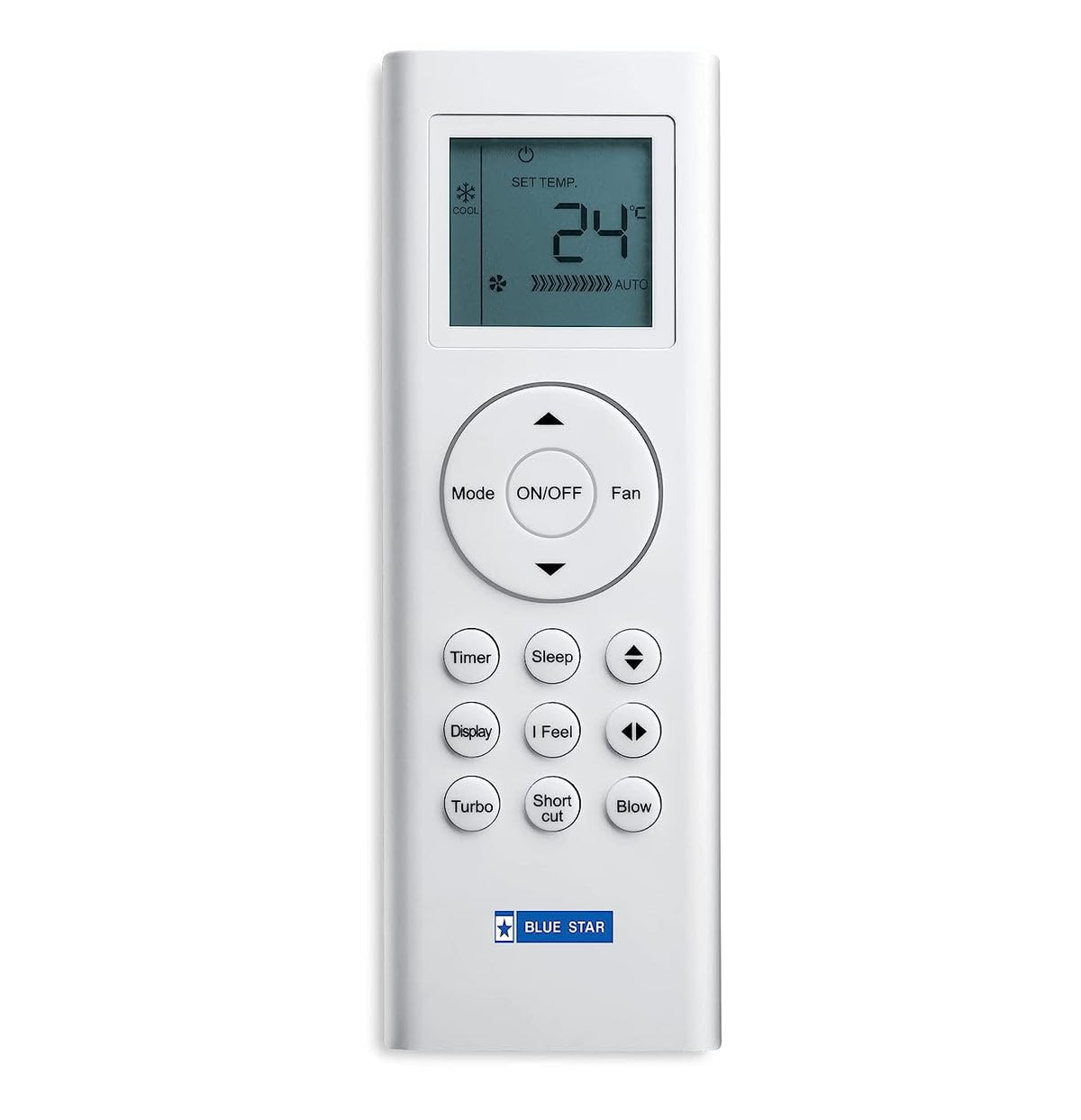

Remote	LCD Remote
Noise Level Outdoor In dB(A)	73
Power Supply to ODU Source(Core/Gauge) sqmm	5 CORE 2.5 SQMM
Power Supply to IDU Source(Core/Gauge) sqmm	4 CORE 1.5 SQMM
Cable from ODU to IDU(Communication Cable) m	Included in ODU to IDU wire
Suction Tube Size Outer Diameter Inch ( mm)	3/4'' (19.05mm)
Liquid Tube Size Outer Diameter Inch ( mm)	3/8'' (9.52mm)
Max Piping Capability Total (metre)	20
Max Piping Capability Vertical (metre)	10
Refrigerant Additional Charge Beyond 5M (g/m)	20

1 x Air Conditioner
