Technical Specifications
|
|
| Air Conditioner Type |
Verticool |
| (Rated) Voltage / Frequency / Phase |
230 V /50 Hz / 1 Ph |
| Cooling Capacity(Min~Max) (Watt) |
6215 |
| Cooling Capacity (Min~Max)BTU/Hr |
21205.6 |
| Cooling Rated Power Input (Min~Max)(Watt) |
1845 |
| ISEER |
3.37 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
1428.23 |
| Nominal Current (Cooling in Amps)/Running Current |
8.2 |
| Air Flow Volume (Wet CFM) (High/ Medium/ Low) |
616/ - /530 |
| Noise Level Indoor (High/Low) In dB(A) |
43/39 |
| Moisture Removal (Litres/Hour) |
2.2 |
| Compressor Type |
Rotary |
| Eco Friendly Refrigerant |
R-32 |
| Refrigerant Quantity (gms) |
1020 |
| Ambient Temp Range (Cooling)°C |
17ºc to 52ºc |

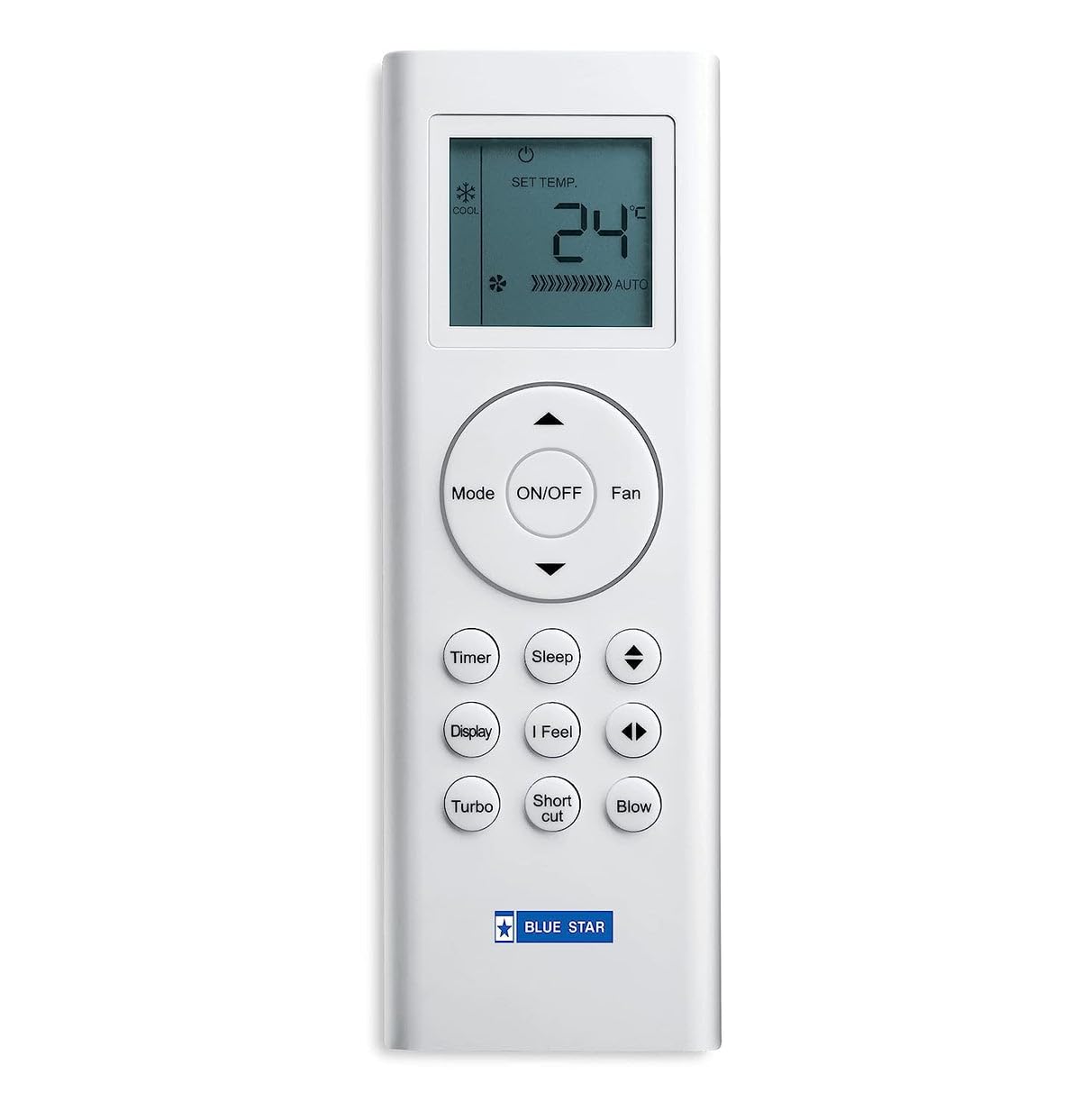

| Remote |
LCD Remote |
| Noise Level Outdoor In dB(A) |
60 |
| Power Supply to ODU Source(Core/Gauge) sqmm |
3C * 2.5 |
| Power Supply to IDU Source(Core/Gauge) sqmm |
4C * 1.5 |
| Cable from ODU to IDU(Communication Cable) m |
Included in ODU to IDU wire |
| Suction Tube Size Outer Diameter Inch ( mm) |
5/8" (15.88mm) |
| Liquid Tube Size Outer Diameter Inch ( mm) |
3/8'' (9.52mm) |
| Max Piping Capability Total (metre) |
12 |
| Max Piping Capability Vertical (metre) |
5 |
| Refrigerant Additional Charge Beyond 5M (g/m) |
15 |
