124,999.00
145,000
14% off
Delivers in: 2 Working Days
| Brand | BLUE STAR |
| Model | FD148TANU3 |
| Capacity | 4.0 Ton |
| Star Rating | 1 Star |
| Colour | White |
| Item Dimensions WxDxH | 838*206*838 mm (IDU) /910*236*910mm (ODU) |
| Item Weight | 27.5Kg (IDU) /33 Kg (ODU) |
| Features Condenser Type | 100% Copper |
| Manufacturer | BLUE STAR LTD. |
| Warranty | 1 Years on Product, 1 Year on Compressor. |
Technical Specifications |
|
| Model Codes | FD148TANU3 |
| Nominal Capacity (Tr) | 4.0 Tr |

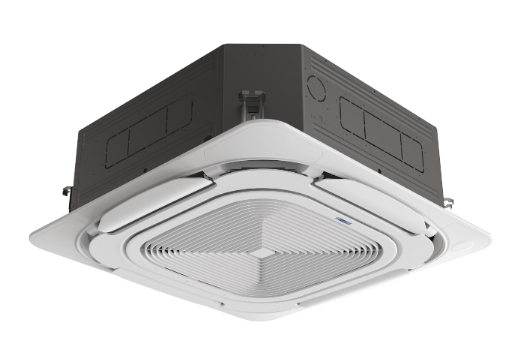

| Air Conditioner Type | Fixed Speed Cassette |

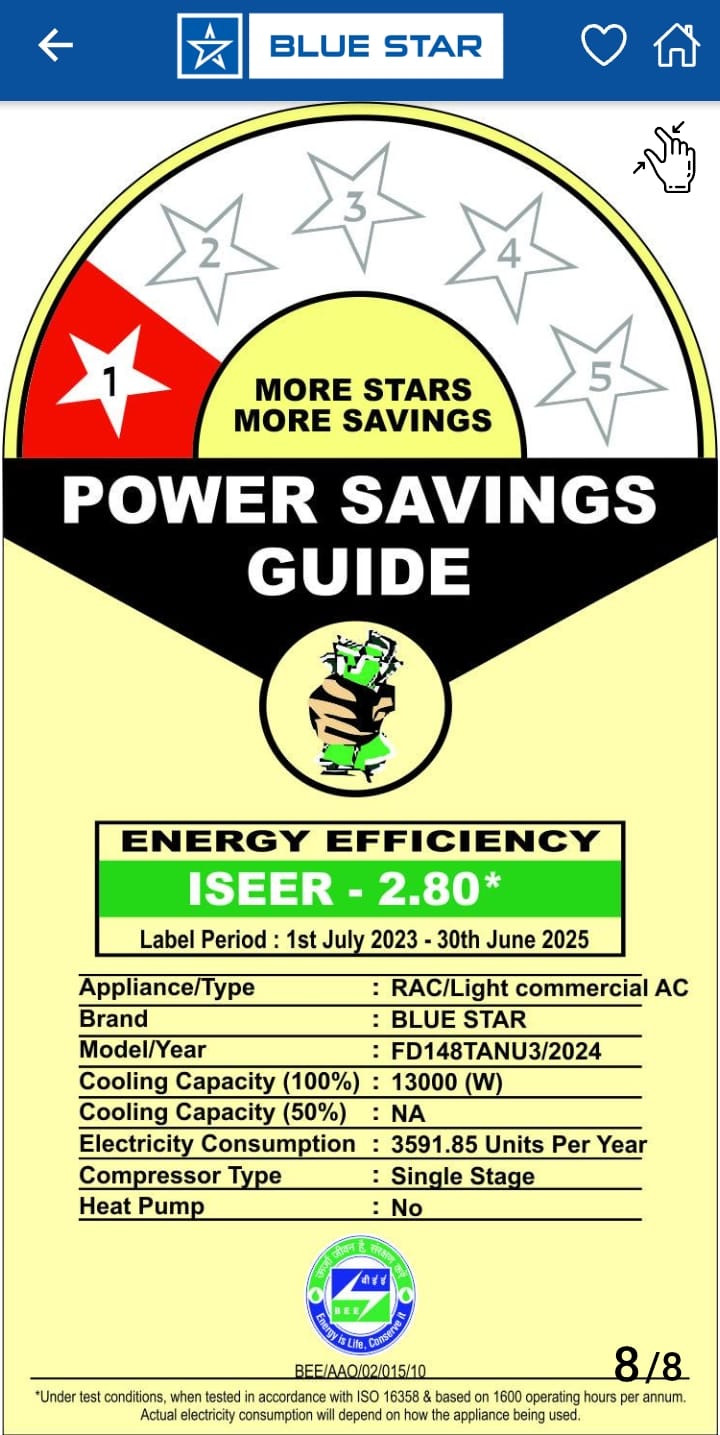

| Star Rating - As Per BEE | 1 Star |
| (Rated) Voltage / Frequency / Phase | 415V / 5OHz / 3Ph |
| Cooling Capacity(Min~Max) (Watt) | 13000 |
| Cooling Capacity (Min~Max)BTU/Hr | 44356.0 |
| Cooling Rated Power Input (Min~Max)(Watt) | 4640 |
| ISEER | 2.8 |
| Electricity Consumed In 1600 Hours. (Units/Year) | 3591.85 |
| Nominal Current (Cooling in Amps)/Running Current | 8.1 |
| Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) | 1072/868/608 |
| Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) | 58.9/55.7/54.1 |
| Moisture Removal (Litres/Hour) | 2.75 |
| Compressor Type | Rotary |
| Compressor Warranty | 1 Years |
| Eco Friendly Refrigerant | R-32 |
| Refrigerant Quantity (gms) | 2240 |
| Ambient Temp Range (Cooling)°C | 21°C to 52°C |

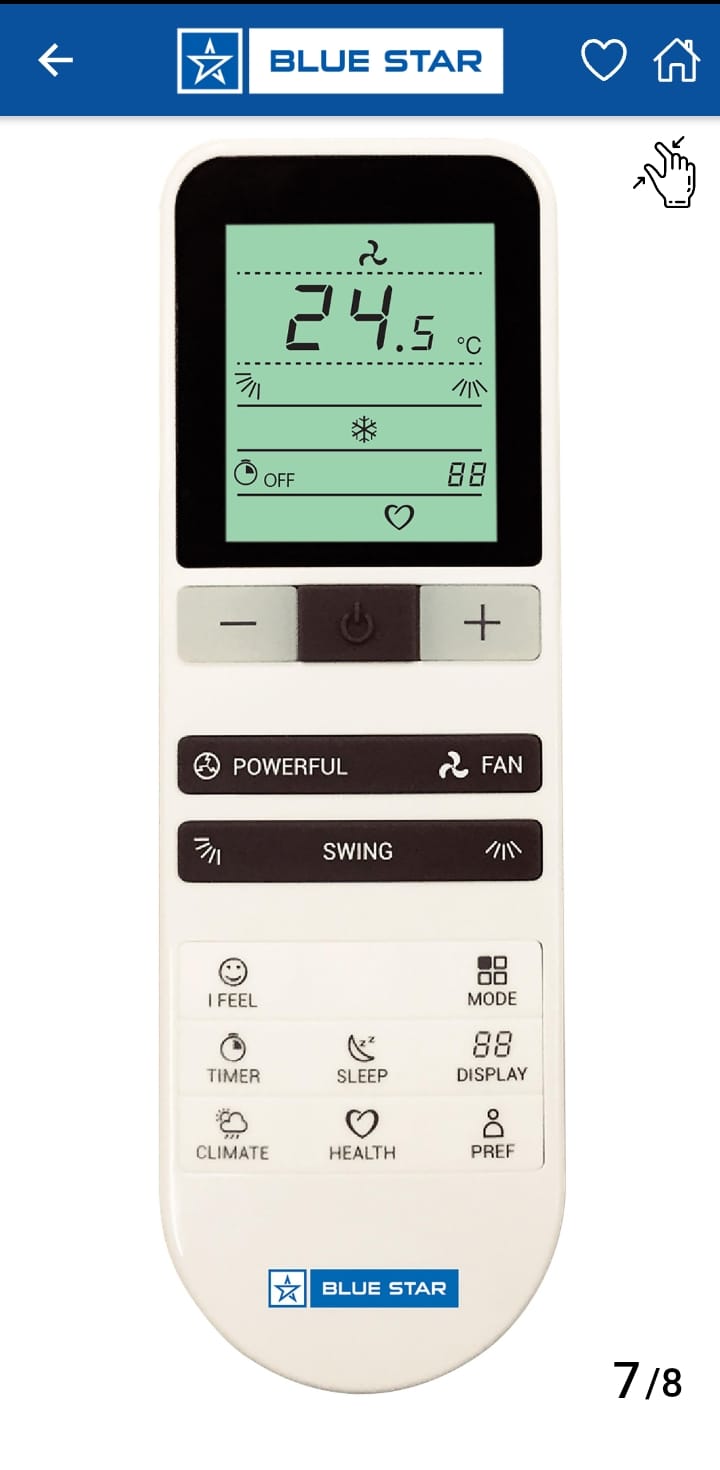

| Remote | LCD Remote with Display |
| IDU Net Dimension (W X H X D ) mm | 838*206*838 |
| IDU Gross Dimension (W X H X D ) mm | 910*236*910 |
| Input Power Supply | Outdoor |
| Net Weight IDU (in Kg | 27.5 |
| Gross Weight IDU (in Kg) | 33 |

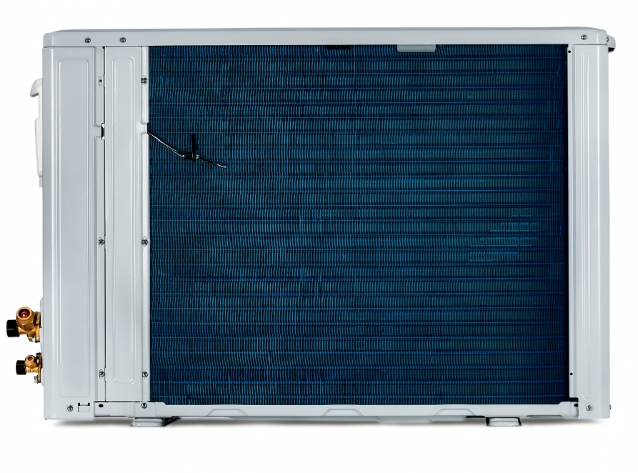

| ODU Net Dimension (W X H X D ) mm | 1075 X 950 X 470 |
| ODU Gross Dimension (W X H X D ) mm | 1100 X 1070 x 520(with wooden skid) |
| Net Weight ODU (in Kg) | 63.4 |
| Gross Weigth ODU (in Kg) | 97.5 |
| Noise Level Outdoor In dB(A) | 70 |
| Power Supply to ODU Source(Core/Gauge) sqmm | 5 Core/2.5sqmm |
| Power Supply to IDU Source(Core/Gauge) sqmm | NA |
| Cable from ODU to IDU(Communication Cable) m | 4 core /2.5sqmm & NA |
| Suction Tube Size Outer Diameter Inch ( mm) | 5/8" (15.87mm) |
| Liquid Tube Size Outer Diameter Inch ( mm) | 3/8"(9.525mm) |
| Max Piping Capability Total (metre) | 30 |
| Max Piping Capability Vertical (metre) | 15 |
| Refrigerant Additional Charge Beyond 5M (g/m) | 24gm |
