64,999.00
81,000
20% off
Delivers in: 2 Working Days
| Brand | BLUE STAR |
| Model | FD118TANU1 |
| Capacity | 1.5 Ton |
| Star Rating | 1 Star |
| Colour | White |
| Item Dimensions WxDxH | 838 x 838 x 206 mm (IDU) /780 x 250 x 526mm (ODU) |
| Item Weight | 20Kg (IDU) /25.8 Kg (ODU) |
| Features Condenser Type | 100% Copper |
| Manufacturer | BLUE STAR LTD. |
| Warranty | 1 Years on Product, 5 Year on Compressor. |
Technical Specifications |
|
| Model Codes | FD118TANU1 |
| Nominal Capacity (Tr) | 1.5 Tr |
| Air Conditioner Type | Fixed Speed Cassette |
| Star Rating - As Per BEE | 1 Star |
| (Rated) Voltage / Frequency / Phase | 230 V / 50Hz / Single |
| Cooling Capacity(Min~Max) (Watt) | 5100 |
| Cooling Capacity (Min~Max)BTU/Hr | 17400.0 |
| Cooling Rated Power Input (Min~Max)(Watt) | 1524 |
| ISEER | 3.35 |
| Electricity Consumed In 1600 Hours. (Units/Year) | 1179.74 |
| Nominal Current (Cooling in Amps)/Running Current | 6.98 |
| Air Flow Volume (Wet CFM) (Turbo/ High/ Medium/ Low) | 725/350/500 |
| Noise Level Indoor (Turbo/ High/ Medium/ Low) In dB(A) | 42.6/34.9/31.3 |
| Moisture Removal (Litres/Hour) | 0.8 |
| Compressor Type | Rotary |
| Compressor Warranty | 5 Years |
| Eco Friendly Refrigerant | R-32 |
| Refrigerant Quantity (gms) | 920 |
| Ambient Temp Range (Cooling)°C | 21°C to 52°C |

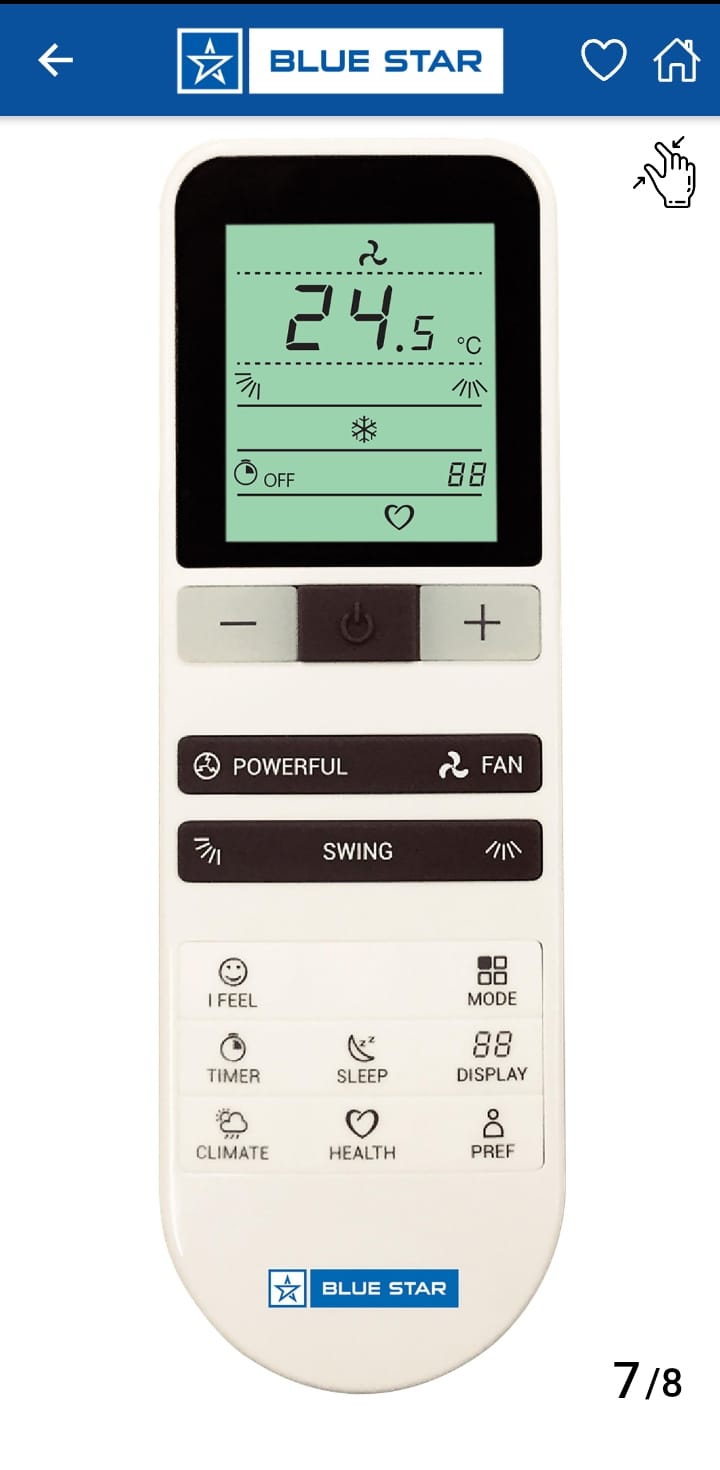

| Remote | LCD Remote with Display |
| IDU Net Dimension (W X H X D ) mm | 838*206*838 |
| IDU Gross Dimension (W X H X D ) mm | 910*236*910 |
| Input Power Supply | Outdoor |
| Net Weight IDU (in Kg | 20 |
| Gross Weight IDU (in Kg) | 25 |
| ODU Net Dimension (W X H X D ) mm | 780 x 250x526 |
| ODU Gross Dimension (W X H X D ) mm | 919x354x550 |
| Net Weight ODU (in Kg) | 25.8 |
| Gross Weigth ODU (in Kg) | 30.8 |
| Noise Level Outdoor In dB(A) | 57 |
| Power Supply to ODU Source(Core/Gauge) sqmm | 1.5sqmm |
| Power Supply to IDU Source(Core/Gauge) sqmm | NA |
| Cable from ODU to IDU(Communication Cable) m | 1.5sqmm |
| Suction Tube Size Outer Diameter Inch ( mm) | 1/2" (12.7mm) |
| Liquid Tube Size Outer Diameter Inch ( mm) | 1/4" (6.35mm) |
| Max Piping Capability Total (metre) | 30 |
| Max Piping Capability Vertical (metre) | 15 |
| Refrigerant Additional Charge Beyond 5M (g/m) | 12gm |
1 x Air Conditioner
