Technical Specifications
|
|
| Product Title |
FC318VNU- Fixed Speed Split AC 1.5 Tr 3 Star |
| Star Rating |
3 star |
| Cooling Capacity (Watt)(Min~Max) |
5350 |
| (Rated) Voltage/ Frequency/ Phase |
230 V / 50Hz / Single |
| ISEER |
3.81 |
| Address of Manufacturer |
BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
| Country of Origin |
India |
| Air Conditioner Technology |
Fixed Speed |
| Cooling Capacity (BTU/hr) |
18255 |
| Cooling Rated Power Input (Watt) |
1405 |
| Cooling Capacity (BTU/hr) (Min~Max) |
18255 |
| Electricity Consumed in 1600 Hours (Units/Year) |
1087.62 |
| Nominal Current (Cooling) (Amps) |
6.3 |
| Air Flow Volume (Wet CFM) (High/Medium/Low) |
660/515/485/430 |
| Noise Level Indoor (dB) (High/Medium/Low) |
45/41/37 |
| Moisture Removal (Litres/Hour) |
1.3 |
| Compressor Type |
Rotary |
| Refrigerant Quantity (kg) |
0.7 |
| Ambient Temp (Cooling) (degree C) |
52 |

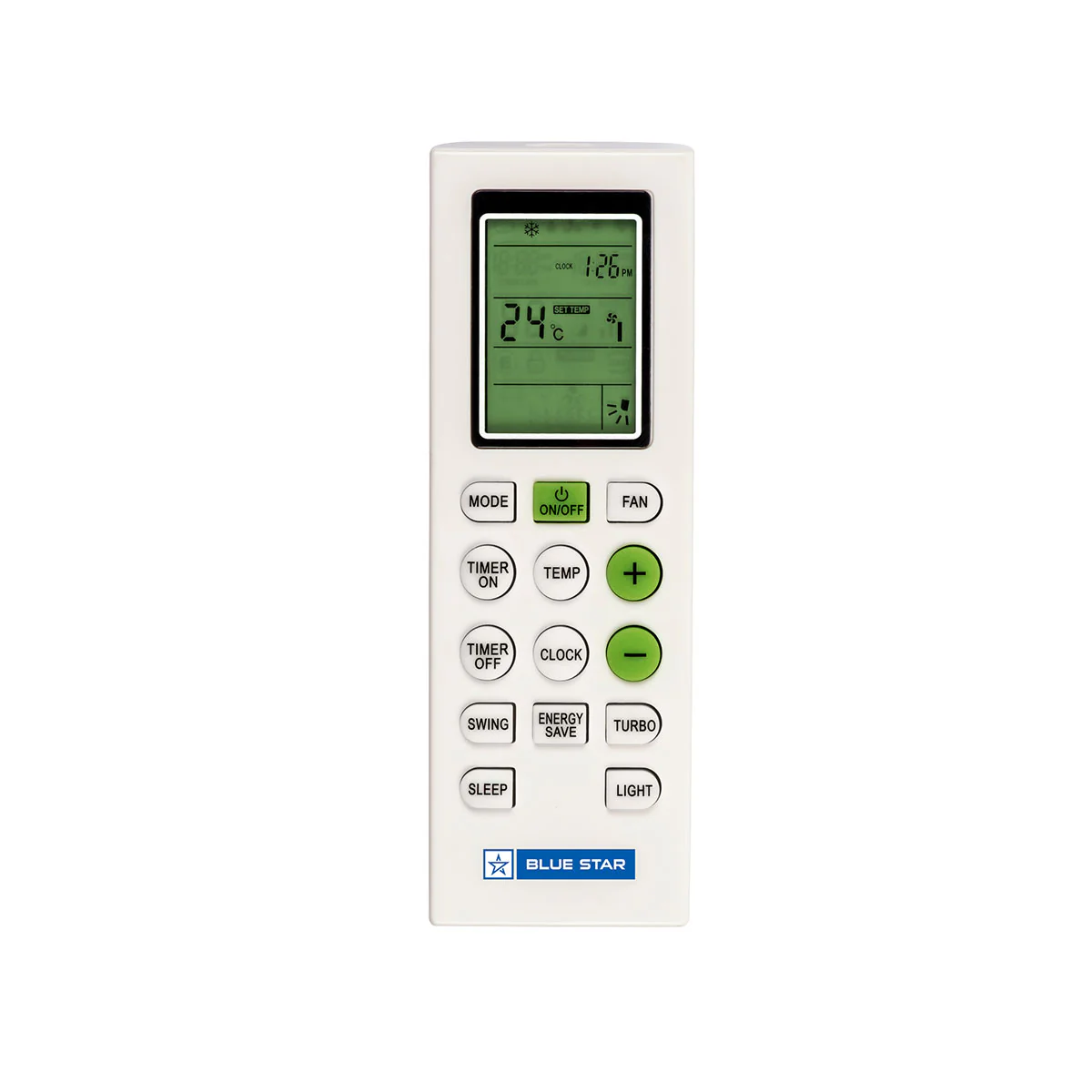

| Remote |
LCD Remote with Display |
| Night Glow Function on Remote Buttons |
yes |
| Net IDU Dimension (mm) |
975 x 230 x 321 (W x D x H) |
| Input Power Supply |
IDU |
| Net Weight IDU (kg) |
11.8 |
| Net ODU Dimensions (Width x Depth x Height) (mm) |
889 x 367 x 582 |
| Net Weight ODU (kg) |
36 |
| Noise Level Outdoor (dB) |
65 |
| Gross IDU Weight (kg) |
14.6 |
| Gross ODU Weight (kg) |
40.5 |
| Suction Tube Size Outer Diameter Inch (mm) |
1/2'' (12.7mm) |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4'' (6.35mm) |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
| Power Supply to ODU Source (Core/Gauge) |
4C * 2.5 sqmm |
| Power Supply to IDU Source (Core/Gauge) |
3C * 2.5 sqmm |
| Remote Battery Type |
AAA |
| Features Refrigerant |
R32 |
| Features Condenser Type |
100% Copper |
| Included Components |
1 each of Indoor Unit, Outdoor Unit, Copper tube (3 m), Inter Connecting wire (3.5 m), Remote, User Manual |
