Item Details
Brand |
BLUE STAR |
Model |
IC324DNUHC |
Capacity |
2 Ton |
Star Rating |
3 Star |
Colour |
White |
Item Dimensions WxDxH |
1110 x 215 x 335 mm (IDU) / 898 x 307 x 569 mm (ODU) |
Item Weight |
15 Kg (IDU) / 31.5 Kg (ODU) |
Manufacturer |
BLUE STAR LIMITED. |
Warranty |
1 Year Product, Lifetime Warranty on Inverter Compressor, 5 Years PCB Warranty. |
Technical Specifications
Cooling Capacity (Watt)(Min~Max) |
6400 (2745~6558) |
(Rated) Voltage/ Frequency/ Phase |
230 V / 50Hz / Single |
ISEER |
3.9 |
Air Conditioner Technology |
Inverter |
Cooling Capacity (BTU/hr) |
21838 |
Rated Cooling Capacity (50% Load) (Watt) |
3200 |
Cooling Rated Power Input (Watt) |
2120 |
Cooling Power Input (50% Load) (Watt) |
750 |
Nominal Current (Cooling) (Amps) |
9.4 |
Air Flow Volume (Wet CFM) (High/Medium/Low) |
703/643/583/521 |
Noise Level Indoor (dB) (High/Medium/Low) |
56/48/39/36 |
Moisture Removal (Litres/Hour) |
1.47 |
Compressor Type |
Inverter Rotary |
Acoustic Jacket on Compressor |
Yes |
Refrigerant Quantity (kg) |
1.28 |
Ambient Temp (Cooling) (degree C) |
52 |

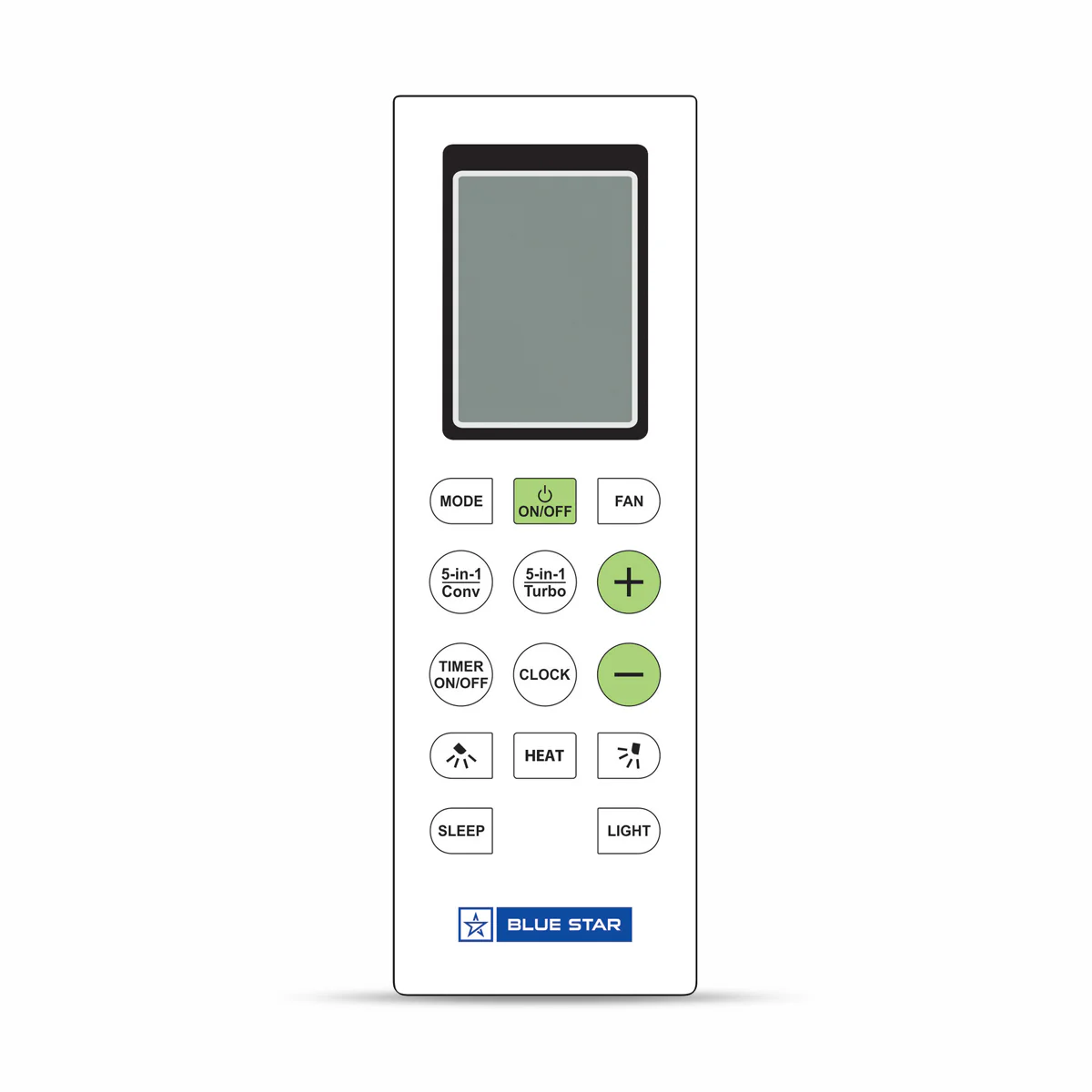

Remote |
LCD Remote with Display |
Night Glow Function on Remote Buttons |
Yes |
Noise Level Outdoor (dB) |
63 |
Suction Tube Size Outer Diameter Inch (mm) |
1/2" (12.7mm) |
Liquid Tube Size Outer Diameter Inch (mm) |
1/4" (6.35mm) |
Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
Power Supply to ODU Source (Core/Gauge) |
4C * 2.5 sqmm |
Power Supply to IDU Source (Core/Gauge) |
3C * 2.5 sqmm |
Remote Battery Type |
AAA |
Features Refrigerant |
R32 |
Features Condenser Type |
100% Copper |
What is in the box?
1 Indoor Unit, 1 Outdoor Unit, Copper wire (3 m), Inter Connecting Pipe (3.5 m), 1 Remote, 1 Manual With Warranty Card
